Product Specifications

• DMX Channels:  4, 6 or 19

• DMX Connectors:  3-pin XLR

• Light Source:  28 LEDs (quad-color RGBA) 3.5 W, (1.3 A), 50,000 hours life expectancy

• Strobe Rate:  0 to 20 Hz

• Beam Angle:  14°

• Field Angle:  23°

• Illuminance:  2,353 lux @ 2 m (per pod)

• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power and Current:

• 80 W, 1.2 A @ 120 V, 60 Hz

• 78 W, 0.6 A @ 230 V, 50 Hz

• Weight:  12.2 lb (5.5 kg)

• Size:  45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)

• Approvals:  CE, RoHS, UKCA

• Operating Frequency (D-Fi):  2.412 to 2.484 GHz

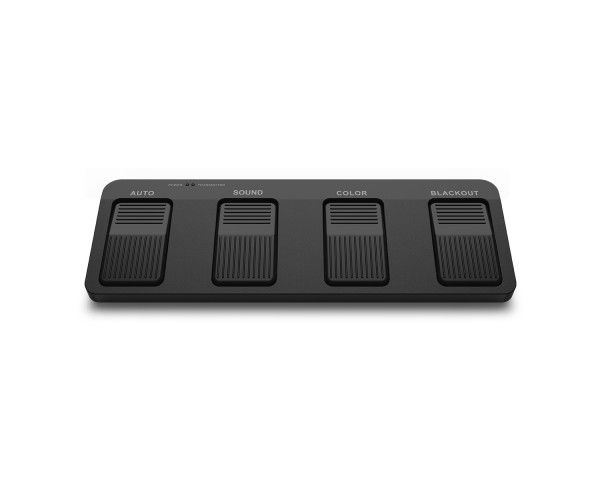

• Operating Frequency (foot switch):  433 MHz

• Max Unobstructed Distance (foot switch):  100 ft (30.5 m)

• Footswitch battery:  9 V

• Stand Height:  7 ft 4 in (2.2 m)

• Fits Tripod Sizes:  1.5 in (36.80 mm)

• Bracket Mounting Hole:  M10 (1.5 mm pitch)

• Weight (Controller):  1.2 lb (0.6 kg)

• Size (Controller):  16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm)

• Optional Controllers:  IRC-6, D-Fi USB
