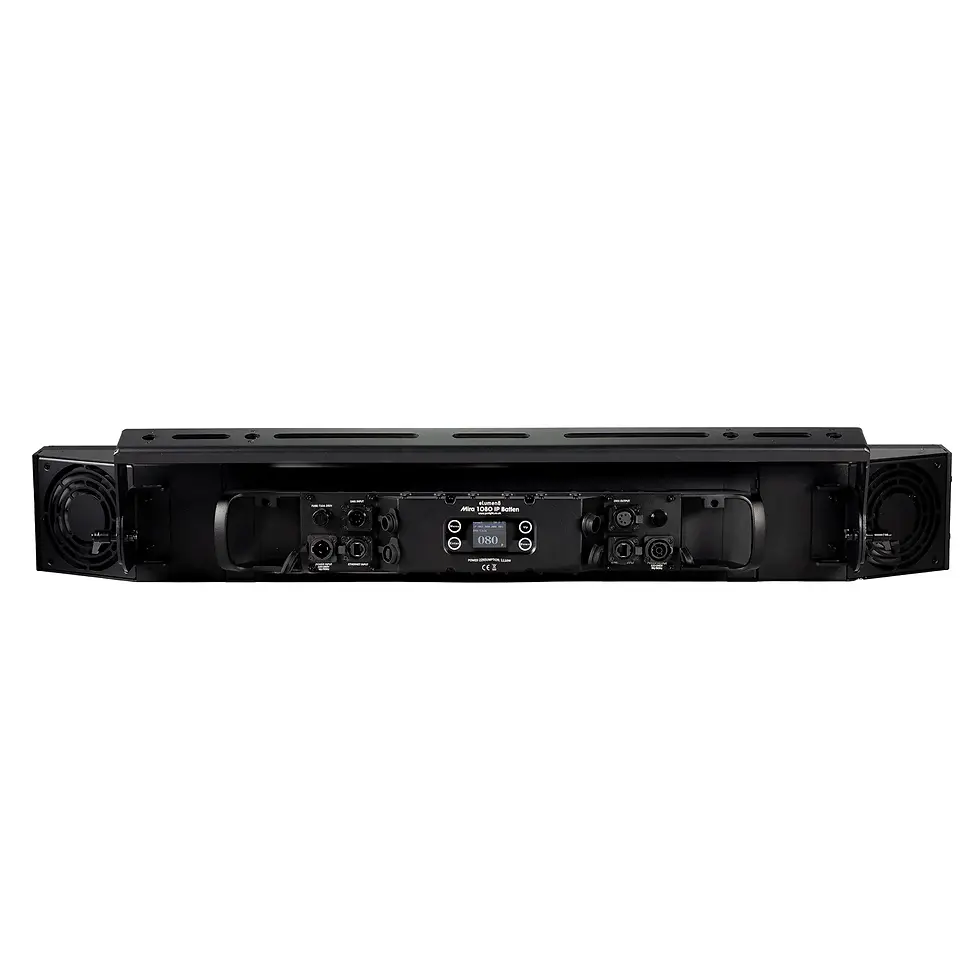

The Elumen8 Mira 1080 IP Batten is a powerful, IP65-rated pixel batten fixture engineered for large-scale outdoor and indoor lighting applications. Featuring 108 x 10W RGBW quad-colour LEDs and a wide 36° beam angle, it produces bold, even washes with 12-zone pixel mapping control. This high-output unit supports DMX, Art-Net, and sACN protocols with selectable refresh rates up to 24kHz for flicker-free camera work. The Mira 1080 includes an integral Art-Net to DMX bridge for downstream control, a heavy-duty adjustable rigging bracket, and quick-release omega clamps. Units can be seamlessly aligned side-by-side to create uninterrupted lighting bars, making it the ideal fixture for stages, arenas, and architectural applications.
elumen8
£1,130.00Price
- Power consumption: 1116W
- Power supply: 100~240V, 50/60Hz
- Fuse: T10A 250V
- IP rating: IP65
- Dimensions: 290 x 1005 x 130mm
- Weight: 19kg
- 2 year warranty
- 108 x 10W quad-colour LEDs (RGBW)
- Beam angle: 36°
- 29,559 Lux @ 2m (full on)
- Refresh rate: 800Hz, 1.2kHz, 2kHz, 4kHz, 6kHz, 8kHz, 16kHz or 24kHz selectable
- 12-zone pixel mapping
- Control protocols: DMX, Art-Net and sACN
- DMX channels: 4/7/9/20/51 or 55 selectable
- Integral Art-Net to DMX for control of DMX fixtures downstream on the same universe
- Static colour, colour temperature and manual modes
- Built-in colour macros and programs
- Colour temperature presets
- 0–100% dimming
- 4 dimming curves: Linear, square law, inverse square law and S-curve
- Variable strobe
- RDM (Remote Device Management)
- 4 button menu with LCD display
- Heavy duty bracket allows for multiple rigging applications
- Quick release omega clamps included
- Multiple units can be aligned side-by-side
- PowerTwist TR1 input/output
- IP rated 5-pin XLR input/output
- 3 selectable fan modes (auto, silent and full)
