The Equinox Fusion 260ZP Moving Head Wash Light takes performance to the next level with temperature-controlled fans, smoother movement, and refined dimming control. Equipped with 19 × 12W RGBL quad-colour LEDs, it delivers everything from a range of colour temperature presets and soft pastels to vivid, saturated colours with exceptional clarity.
Designed for creative versatility, the LEDs are fully pixel mappable, enabling dynamic colour chases, eye-catching patterns, and comprehensive wash coverage. A motorised zoom range of 6°–50° provides both tight beam effects and wide-angle washes, adapting effortlessly to a range of performance environments.
Ideal for concerts, theatre productions, and live events, the Fusion 260ZP is a powerful and reliable tool for any lighting designer. 16-bit pan/tilt with auto correction, 7 selectable DMX channel modes, wireless DMX, ArtNet, PowerTwist TR1, and quick-release omega clamps make this fixture extremely versatile and able to integrate seamlessly into any rig.

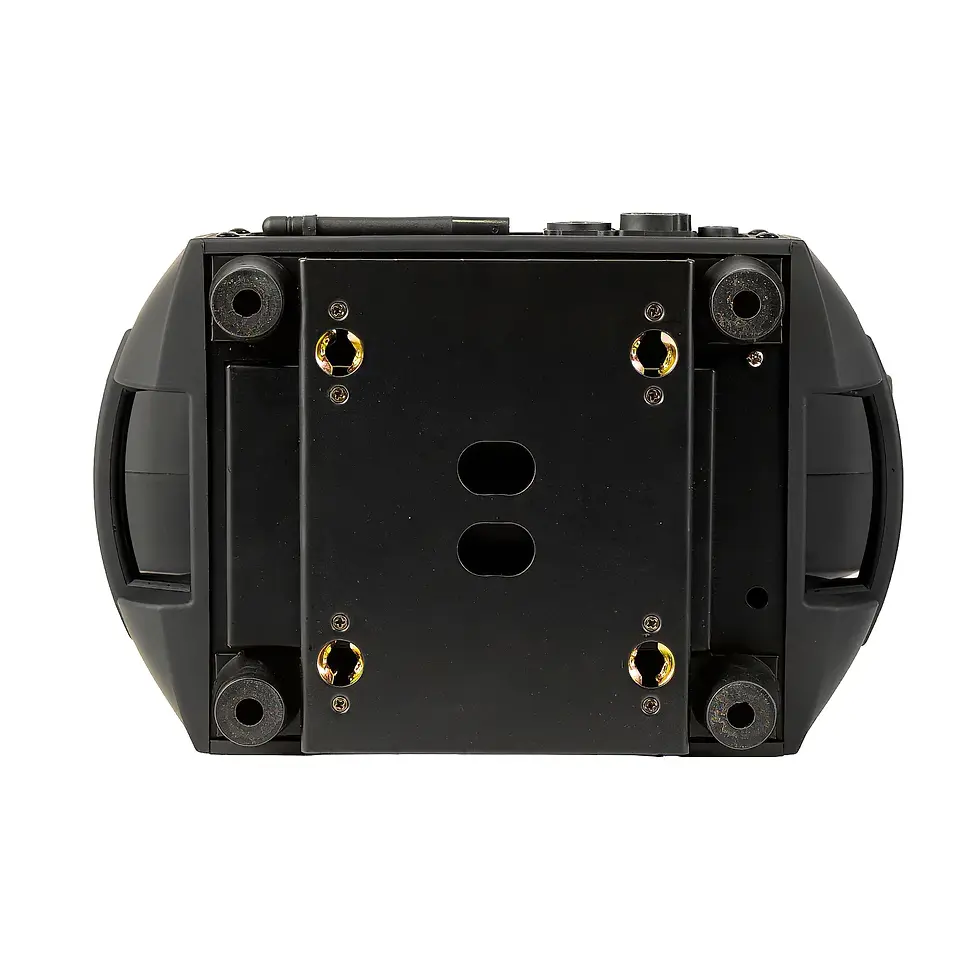

Equinox Fusion 260ZP
- Power consumption: 323W
- Power supply: 100–240V, 50/60Hz
- Fuse: F4A 250V
- Dimensions (H x W x D): 414 x 324 x 193mm
- Weight: 8.5kg
- 19 × 12W quad-colour LEDs (RGBL)
- Adjustable beam angle: 6°–50°
- 6° – 32,722 Lux @ 2m (full on)
- 50° – 3,896 Lux @ 2m (full on)
- CRI: 89
- Refresh rate: 650Hz, 1.5kHz, 3.6kHz, 12kHz or 25kHz selectable
- Motorised zoom
- Full pixel mapping capabilities
- Control protocols: DMX, Kling-net, Art-net and sACN
- DMX channels: 2/9/18/23/27/85 or 93 selectable
- Wireless control (W-DMX Sweden compatible transceiver)
- Auto, sound active and primary/secondary modes
- Forward facing show modes
- Colour temperature presets
- Pan/tilt auto correction
- 16-bit pan/tilt positioning
- Pan: 540°, Tilt: 270°
- 0–100% dimming
- Variable strobe
- 4 dimming curves: Linear, square law, inverse square law and S-curve
- Supplied with quick release omega clamps
- Square hole spacing allows clamp mounting in all orientations
- 4-button menu with LCD display
- PowerTwist TR1 input/output
- EtherNET input/output
- 5-pin XLR input/output
- Temperature controlled fans
