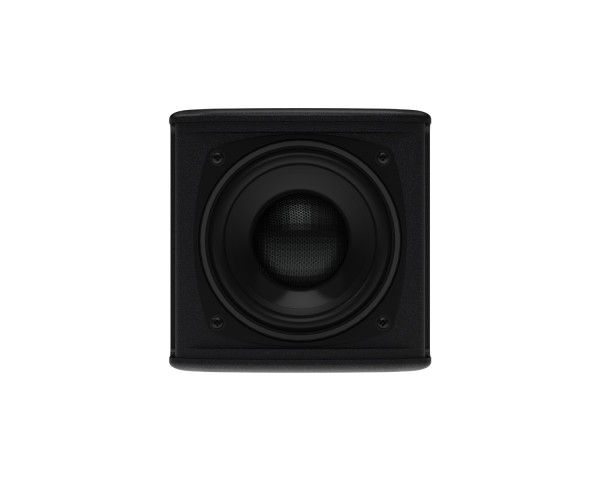

Product Specifications

• Type:  Coaxial passive 2-way

• Crossover Frequency:  2.6kHz

• Frequency Response - 4π (5):  142Hz - 18kHz ± 3dB, -10dB @103Hz with preset

• Drivers:

  • LF: 4", 1.25" Voice coil, Ferrite Motor

  • HF: 0.7" exit, 1" Voice coil, Coaxial HT polymer dome compression driver

• Sensitivity:  (4V 1m free-field) 84dB

• Nominal Impedance:  16 Ohms

• Rated Power:  60W AES, 240W peak

• Maximum SPL:  102dB Cont, 108dB Peak (6dB)

• Dispersion (-6dB):  110° conical

• Connectors:  NL4MPXX speakons (pair), Pheonix terminal block 1725302

• Pin Connections (INPUT):  1+ / 1-

• Pin Connections (LINK):  1+/- and 2+/-

• Fittings:  4 x M6 inserts, 1 x 3/8” (mic stand) fixing point

• Dimensions:

  • (W) 130mm, (H) 130mm, (D) 126mm

  • (W) 5.1ins, (H) 5.1ins, (D) 5.0ins

• Weight:  1.9kg (4.2lbs)

• Volume:  0.8L
