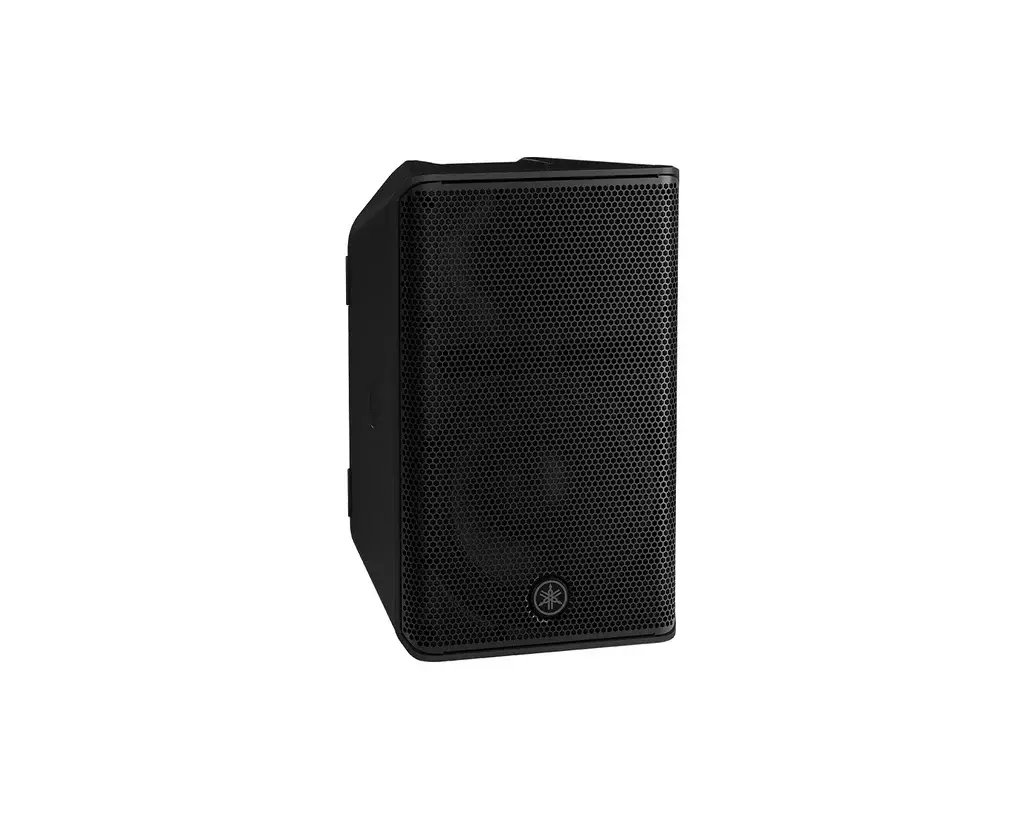

Yamaha CXR10 mk3 10" 2-Way Bass-Reflex Passive Loudspeaker 550W

Speaker type:  2-way Speaker, Bass-reflex

Frequency range (-10dB):  54 Hz - 20 kHz

Coverage area:  H90ﾟ x V60ﾟ

Crossover:  2.0 kHz

Nominal impedance:  8 Ω

SPL:

• Sensitivity (1W; 1m on axis):  93 dB SPL

• Peak (Calculated):  123 dB SPL

Components:

• LF:  Diameter: 10" cone, Voice Coil: 2.5"

• HF:  Diaphragm: 1.75", Type: 1" throat compression driver

Power rating:

• NOISE:  275 W

• PGM:  550 W

• PEAK:  1100 W

I/O connectors:  SpeakON NL4MP x 2 (parallel connected)

Cabinet material:  Plastic (PP)

Finish:  Black

Handle:  Top x1

Pole socket:  Φ35 mm x2 (Bottom, 0° or -7°)

Rigging:  Top x 2, Rear x 1 (Fit for M8 x 15 mm Eyebolts), Bottom x 2, Side x 2 (Fit for M8 x 25 mm UB-DXRDHR10A)

Floor Monitor Angle:  55°

Dimensions (WxHxD):  310 mm (12.2") x 502 mm (19.8") x 310 mm (12.2")

Net weight:  12.2 kg (26.9 lbs)

Options:  U-bracket: UB-DXRDHR10A, Cover: SPCVR-DXR103

10" LF + 1.75" HF proprietary high-durability speaker units

The large-diameter horn secures directivity control across a wide frequency range

Optimised port positioning reduces standing wave effects

Lightweight, high-performance, form-injection moulded enclosure with a symmetrical, functional design

Optional UB-DXRDHR10A U-bracket allows for both vertical and horizontal use

Optional SPCVR-DXR103 speaker cover protects speakers from rigours of equipment transport, lengthy storage, or outdoor performances

Rigging points for use with eye bolts

Dual-angle pole sockets offer both 0° and a -7° down tilt
