Product Specifications

General

• Hardware - Front Panel

  • 48 Multifunctional Faders (channels or playbacks, with select or go buttons)

  • Internal 7” multi-touch screen

  • Master Playback with Go Button playback and master intensity

  • 4 embedded encoder wheels with select buttons

  • Dedicated buttons for key functions

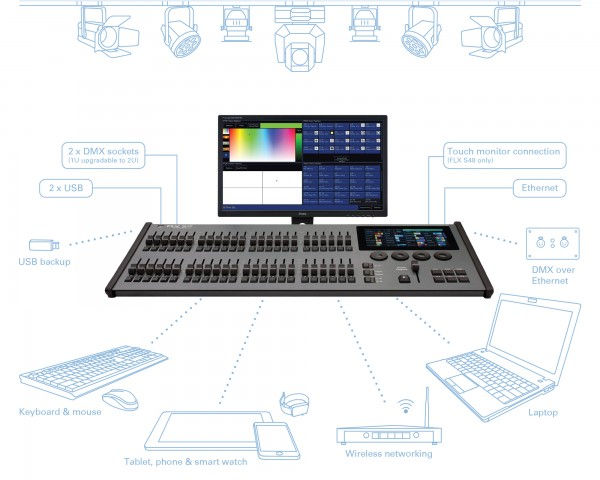

• Hardware - Inputs/Outputs

  • 1 5-pin XLR connector for DMX and RDM

  • 1 3-pin XLR connector for DMX and RDM

  • Ethernet (Visualisation and Remote Apps)

  • 2 Universes over Ethernet using Art-Net 4 or sACN

  • 2 multipurpose USB ports (saving shows, connection of accessories & Wings, software updates)

  • 1 DVI-D monitor output (optional touch screen control)

  • External power supply

• Software - capacity

  • 96 Fixture Controls (using single or multiple DMX channels)

  • 97 Playbacks (equivalent of Cue Stacks, Submasters or Chases)

  • 10,000 cues

  • 4 x 96 Palettes (Colour, Beamshape, Position, Effect)

  • 96 groups

• Software - features

  • Integrated colour picker and “Mood Boards by LEE Filters”

  • Multi touch Pan/Tilt grid

  • Auto palettes, groups and fixture macros

  • Gobo previews and library

  • Move on Dark

  • Tracking and Non-Tracking modes available

  • Support for wireless remote control through handheld devices and remote monitors

• Electrical

  • Supply voltage range: 100 - 240V AC; MAX 2A

  • Frequency: 50 - 60Hz

  • Operating temperature: +5 to +40°C

Physical & Dimensions

• Height: 68mm

• Width: 669mm

• Depth: 284mm

• Weight: 5.5kg
